CNC Press Brake Machine: Precision Bending Technology for Modern Fabrication
Introduction
The CNC press brake machine is an essential tool in modern metal fabrication industries, known for its precision, efficiency, and versatility. Whether you’re bending mild steel, stainless steel, or aluminum sheets, the CNC press brake ensures repeatable accuracy and high-speed operation. With options like hydraulic CNC press brake, electric CNC press brake, and hybrid CNC press brake, fabricators can now choose machines that best match their production demands and energy preferences.
What is a CNC Press Brake Machine?
A CNC (Computer Numerical Control) press brake is a sheet metal bending machine that uses programmable commands to control ram stroke and back gauge positions. This automation enables complex and high-volume metal bending operations with minimal manual intervention.
Types of CNC Press Brake Machines

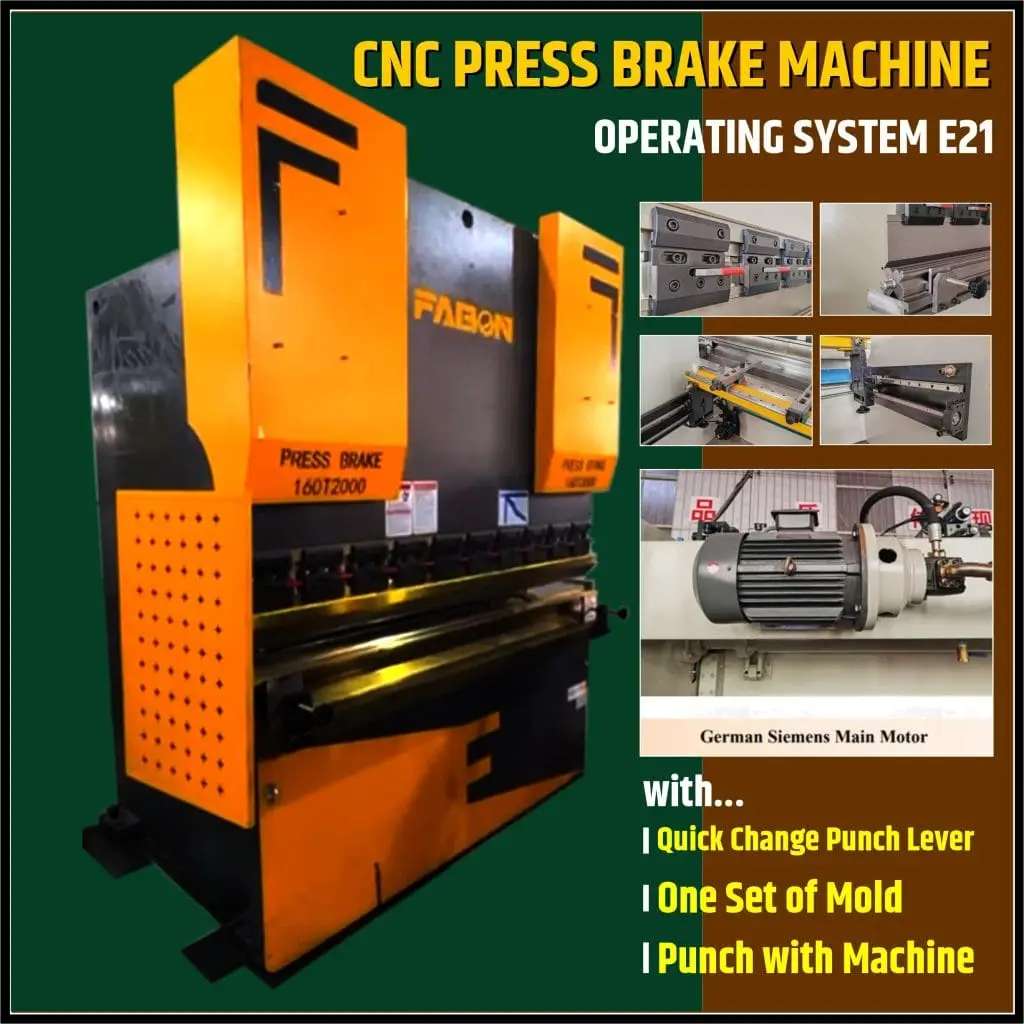

1. Hydraulic CNC Press Brake
The hydraulic CNC press brake uses hydraulic cylinders to apply force on the metal sheet. Known for their high tonnage capacity, they are ideal for bending thick sheets in industrial settings.
Advantages:
- High bending force
- Suitable for heavy-duty applications
- Proven and durable technology
2. Electric CNC Press Brake
The electric CNC press brake replaces hydraulic systems with servo-electric drives, offering enhanced energy efficiency and lower noise levels.
Advantages:
- Faster cycle times
- Eco-friendly with lower energy consumption
- High accuracy and repeatability
3. Hybrid CNC Press Brake
The hybrid CNC press brake combines the strength of hydraulic systems with the precision of electric motors, offering the best of both worlds.
Advantages:
- Energy-efficient
- Reduced oil usage and maintenance
- Precise bending with high productivity
CNC Metal Bending Machine Applications
A CNC metal bending machine is widely used in:
- Sheet metal fabrication
- Automotive body parts
- Electrical cabinets and enclosures
- Industrial HVAC systems
- Construction and infrastructure projects
Its ability to maintain consistent bend angles and produce complex shapes makes it an indispensable machine for precision fabrication.
Key Press Brake Bending Parameters
To achieve perfect bends, the following press brake bending parameters are essential:
- Bending angle: Controlled by ram stroke and tool height
- Tonnage: Force required to bend specific thickness
- Back gauge: Controls sheet positioning
- Tooling type and die opening
- Material properties: Yield strength, thickness, and length
Proper calibration of these parameters ensures consistent output and prevents material damage.
Industrial CNC Press Brake: A Must-Have for Metal Fabricators
An industrial CNC press brake is engineered for 24/7 operations with high reliability. These machines are robust, customizable, and equipped with advanced CNC controllers for ease of programming and repeatability.
Features of industrial models:
- High tonnage (up to 600T or more)
- Long bending length (up to 6 meters)
- Heavy-duty frame construction
- Programmable crowning systems
Automatic Tool Changer Press Brake: Revolutionizing Sheet Bending
The automatic tool changer press brake (ATC) significantly reduces downtime by automating the changeover of tools for different jobs. This is ideal for fabricators handling small batch sizes with frequent part changes.
Benefits:
- Faster setup times
- Reduced labor dependency
- Higher machine uptime
- Accurate tool alignment
Safety Devices for CNC Press Brake Operation
Press brake safety devices are critical for protecting operators during high-speed bending operations. Modern CNC press brakes are equipped with:
- Laser safety guards and beam sensors
- Light curtains
- Emergency footswitches
- Collision detection systems
- Safety PLCs for machine interlocking
Ensuring machine safety compliance (like CE certification) is a top priority in industrial workshops.
Conclusion
Investing in the right CNC press brake machine—whether it’s a hydraulic, electric, or hybrid CNC press brake—can significantly boost your fabrication efficiency and part accuracy. From automatic tool changers to smart safety systems, these machines are transforming sheet metal manufacturing.
For manufacturers and workshops looking for precise, programmable, and scalable solutions, the CNC metal bending machine stands as the backbone of advanced fabrication.
