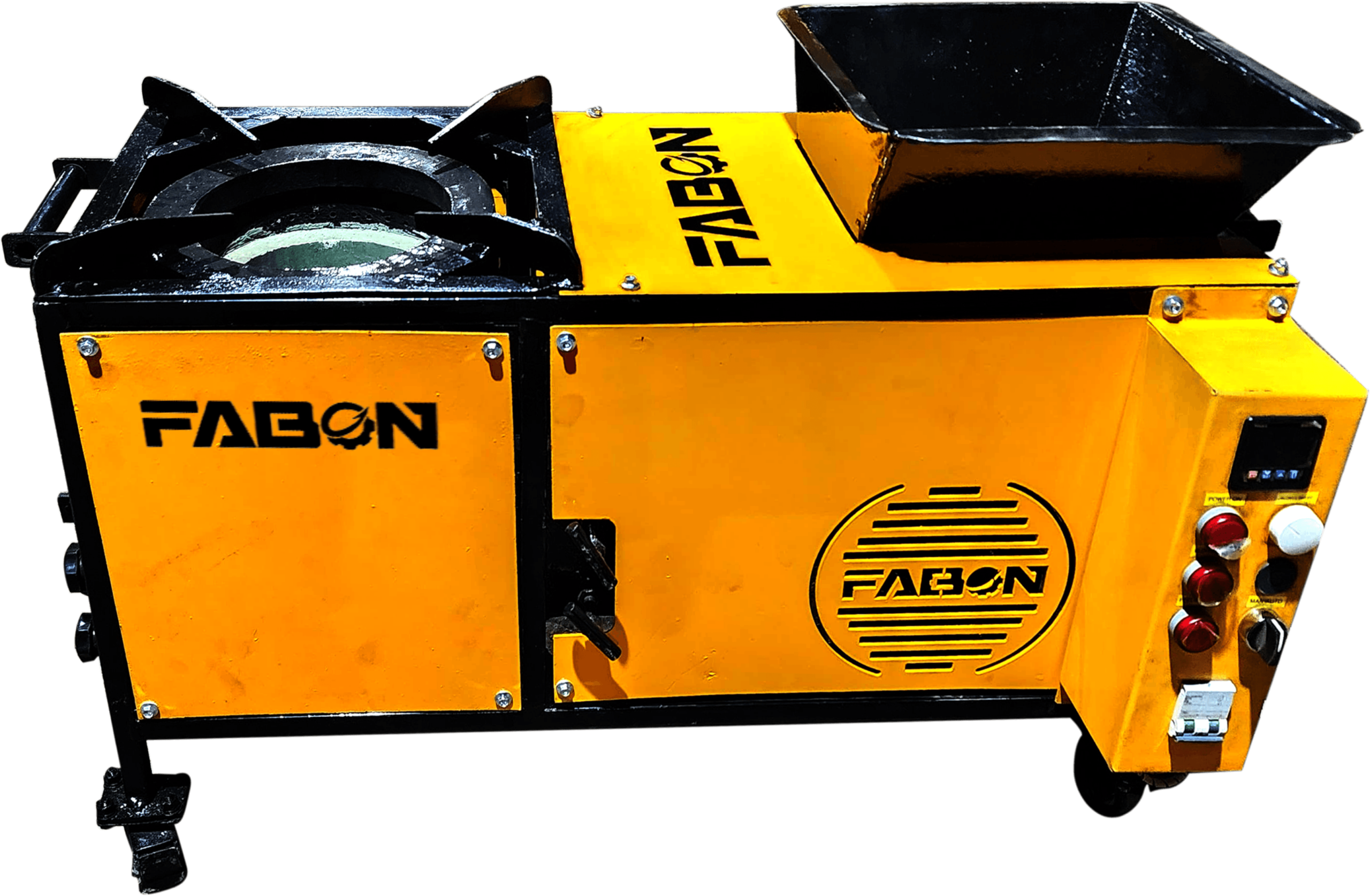

FABON Biomass Pellet Burner: Clean Energy from Organic Waste to Flame
Introduction
As global demand for clean, sustainable, and affordable energy continues to grow, the need for innovative combustion systems has never been more critical. FABON Engineering’s Biomass Pellet Burner provides an intelligent and efficient solution to this demand. It offers industries and institutions a powerful alternative to fossil fuels by converting biomass pellets and briquettes into high-efficiency thermal energy.
Designed with advanced combustion technology and built for rugged industrial use, the FABON Biomass Pellet Burner is ideal for applications across boilers, heating systems, dryers, and ovens. Combined with a smoke collector, it ensures not only high performance but also eco-friendly operation with near-zero emissions.
________________________________________
1. What is a Biomass Pellet Burner?
A biomass pellet burner is a high-efficiency combustion system designed to burn biomass pellets or briquettes, converting them into usable thermal energy for heating applications. It is an eco-friendly substitute for oil, diesel, LPG, and coal burners, offering significant cost and emission reductions.
________________________________________
2. FABON’s Approach to Biomass Energy
FABON Engineering specializes in sustainable energy machinery, and our Biomass Pellet Burner exemplifies innovation, durability, and energy efficiency. Our systems are tailor-made for Indian and global environmental conditions and are optimized to burn various organic waste fuels.
________________________________________
4. Outputs from Biomass Combustion
Depending on the combustion setup and integration, FABON Biomass Burners can facilitate production of:
• 🔥 Direct Heat (thermal energy)
• 💨 Biogas or Syngas (with compatible gasification modules)
• ♻️ Refuse-Derived Fuel (RDF)
• 🌱 Compostable Ash (low ash residue for soil amendment)
________________________________________
5. FABON Biomass Pellet Burner: Technical Specifications
Feature Specification
Model Range FABON-BB50 to FABON-BB500
Capacity (kCal/hr) 50,000 to 5,00,000 kCal/hr
Fuel Type Biomass Pellets, Briquettes
Burner Type Horizontal / Vertical Chamber
Ignition System Automatic Electric Ignition
Feeding Mechanism Variable Speed Screw Feeder
Automation PLC-Controlled Operation
Emission Control Smoke Collector / Cyclone / Wet Scrubber
Safety Features Backfire Protection, Overheat Alarms
Burner Efficiency 85–92%
Material MS/SS with refractory lining
Mounting Skid/Flange/Wheel-based Custom Options
________________________________________
6. Key Components and System Design
• Fuel Hopper & Feeder System: Ensures consistent fuel input
• Combustion Chamber: Engineered for optimal air-fuel mixing
• Ash Outlet: Easy-to-clean bottom chamber for ash discharge
• Smoke Collector: Reduces particulate emissions
• Control Panel: Touchscreen, programmable controls
• Temperature Sensors: Real-time monitoring
________________________________________
7. Applications Across Industries
FABON Biomass Burners are suitable for:
• 🏭 Textile and Garment Factories
• 🍲 Food Processing & Commercial Kitchens
• 🏥 Hospitals and Institutions
• 🏫 Schools and Colleges
• 🌾 Agro-Based Industries
• 🏢 Commercial Buildings (space heating)
• 🛠 Dryers and Hot Air Generators
• 🔥 Steam Boilers and Water Heaters
________________________________________
8. Advantages of FABON Pellet Burners
✅ Fuel Cost Savings: Up to 60% reduction vs. diesel or LPG
✅ Environmentally Friendly: 90% less CO₂ compared to fossil fuels
✅ Versatile Fuel Options: Runs on multiple types of organic biomass
✅ Low Emissions: Optional smoke collector & scrubber for pollution control
✅ Easy to Retrofit: Connects easily to existing boilers or dryers
✅ Minimal Maintenance: Designed for continuous operation
✅ Government Incentives: Eligible under MNRE biomass schemes
________________________________________
9. Types of Biomass Fuel Supported
• Biomass Pellets (6–10 mm, 8–15% moisture)
• Biomass Briquettes (cylindrical or rectangular)
• Agri-Waste Pellets (corn stalk, rice husk, bagasse)
• Municipal RDF Pellets
• Forestry Waste Pellets (wood dust, bark, leaves)
________________________________________
11. Why Add a Smoke Collector?
Pollution control is now mandatory across many states and industries. FABON provides:
• Cyclone Separators
• Baghouse Filters
• Wet Scrubbers
• ESP (Electrostatic Precipitators)
These systems are integrated into our burner setups, making operations compliant with CPCB and local pollution board norms.
________________________________________
12. Integration with Boilers, Dryers, and Heating Systems
FABON’s engineering team helps you integrate the biomass burner with:
• 🔄 Steam Boilers (up to 10 TPH)
• 🌬 Hot Air Generators
• 🌡 Thermic Fluid Heaters
• 🍃 Herbal and Spice Dryers
• 🍚 Puffed Rice and Food Fryers
